Borehole IP / Resistivity

Applications in Mineral Exploration

  • Identifying gold-bearing veins with sulphides.
  • Mapping disseminated sulphides and stringers surrounding VMS.
  • Discriminating between barren and mineralized EM conductors.
  • Identifying sphalerite, discontinuous banded mineralization, non-conductive sulphides.
  • Mapping of alteration zone and structural features controlling mineral deposit? (Porphyry cooper system).
  • Mapping of clay minerals and/or magnetite associated with kimberlitic rocks.
  • Resistivity mapping for alteration, basin depth.
  • Selecting the best electrode array for reconnaissance, depth penetration or detail target mapping.

Equipement and Software

Transmitter Tx-III from GDD Instruments (up to 7,8 Kw)
Receiver Elrec-Pro from IRIS Instruments (10 input channels and 20 decay curve sampling windows)
Borehole cable Custom manufactured shielded cable for BHIP, pole-dipole, a = 20 m, n = 1 to 6
In-field QC Processing and plotting are performed using our proprietary Refusilo® software.
Analysis Image2D, Image3D, Res2Dinv, Res3Dinv, UBC 3D

Borehole IP Configuration and Survey Parameters

BOREHOLE Survey Features H2H-3D-IP® Down-hole, Pole-dipole
Radius of investigation may exceed 400 m generally < 120 m
Depth of investigation 3,000 m 2,000 m
Radius of investigation proportional to borehole spacing X
Radius of investigation proportional to electrode spacing in hole   X
Explore below the borehole X
Investigation is not affected by conductive overburden X X
Each additional hole-pair improves the delineation of the source geometry X
Detect disseminated sulphides between holes X X
Survey cost less than 5% of drilling cost X X
Inexpensive probe and cable is used X



Click image to enlarge

H2H 3D IP® electrode Configuration

The radius of exploration "r" is half the distance between the hole-pairs being surveyed and extends below the bottom of the hole.


Click image to enlarge

Classical Borehole IP electrode configuration

The radius of exploration is limited by the electrode spacing, which in turn is limited by the hole length. Abitibi Geophysics uses a specially engineered cable to avoid capacitive coupling and to enable recording of 6 dipoles simultaneously. This configuration with short electrode separations is particularly useful for collecting a physical property mapping.

Supplied Products - Borehole IP

  • Image3D® images showing the location of all resistive, conductive and polarizable features within the array’s investigation radius.
  • 3D reconstructed chargeability and resistivity database.
  • Colour plan views and cross-sections of the recovered resistivity and chargeability.
  • 3D videos of the resistivity and chargeability main features.

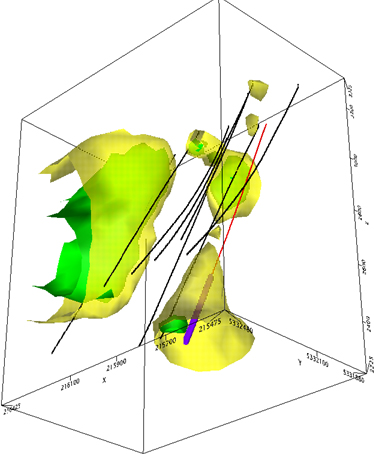

The following is from a H2H-3D-IP®inversion presented as a 3-D animation of the 25 mV/V (yellow) and 40 mV/V (green) chargeability iso-surfaces. The inversion shows the chargeability source (disseminated sulphides) as a target shape accurately positioned using the client’s borehole coordinate system.
