Hinobaan
Philippines
La polarisation provoquée est une méthode efficace pour l’exploration des porphyres en cuivre, ainsi que pour délimiter leurs frontières.
Image2D™ rend la planification des trous de forages facile.

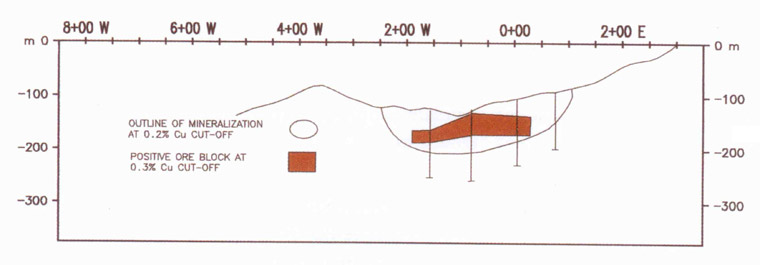

Hinobaan (97 Mt @ 0.5 % Cu) is a porphyry copper sub-horizontal deposit located in the Philippines.

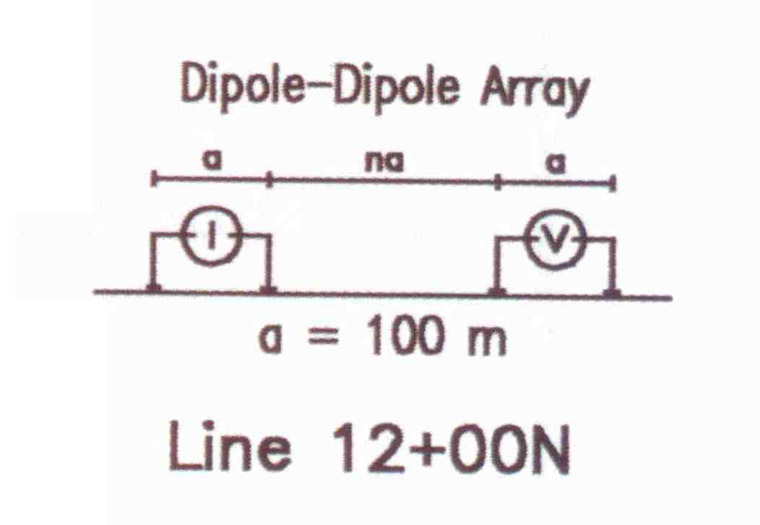

An induced polarization survey was conducted to verify the deposit extension.

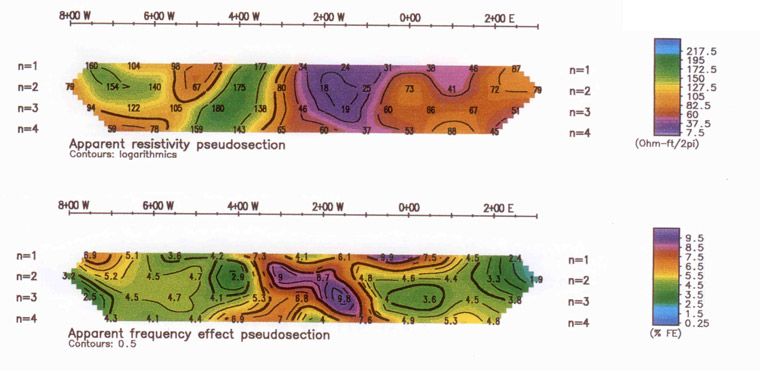

The pseudosections confirm the mineralization, but where to drill?

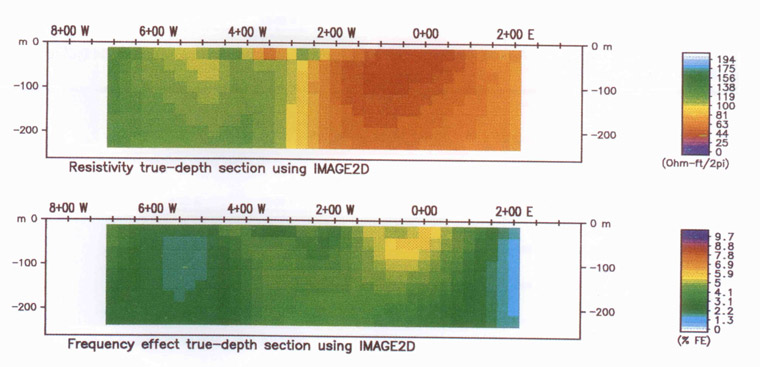

Conversion of the IP data with Abitibi Geophysics Image 2D™ proprietary software localizes the deposit and shows that it has limited depth .
