Une réponse typique en électromagnétisme, domaine du temps, pour un dépôt en cuivre-zinc reposant sous des latérites.
Tawi Rakah is a Cu-Zn-Au sulphide ore body hosted by andesite and basalt. The deposit is in a semi-arid environment beneath 30-40 meters of laterite cover.

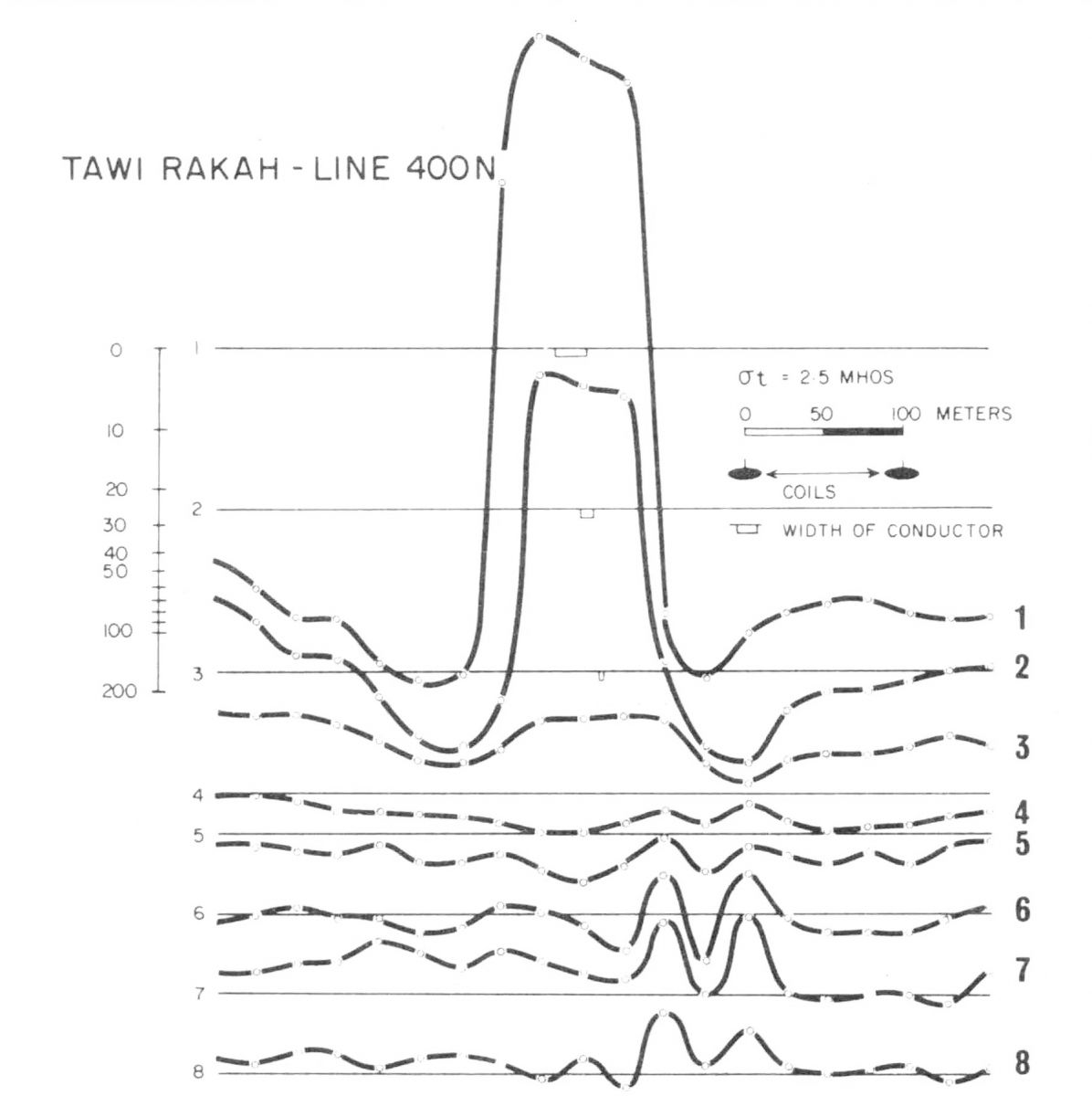

Measurements were made by an eight-channel, ground TDEM system.
The ore body produces the strongest response on the early channels.
The response on the mid and late channels is of a similar magnitude to the response of the conductive background.
This demonstrates the importance of retaining the high frequency information generated by the TDEM system when searching for weak conductors in a conductive environment.
