Lac Herbin

Canada

Hole to hole



Lac Herbin is a small lode gold deposit located within a batholith.

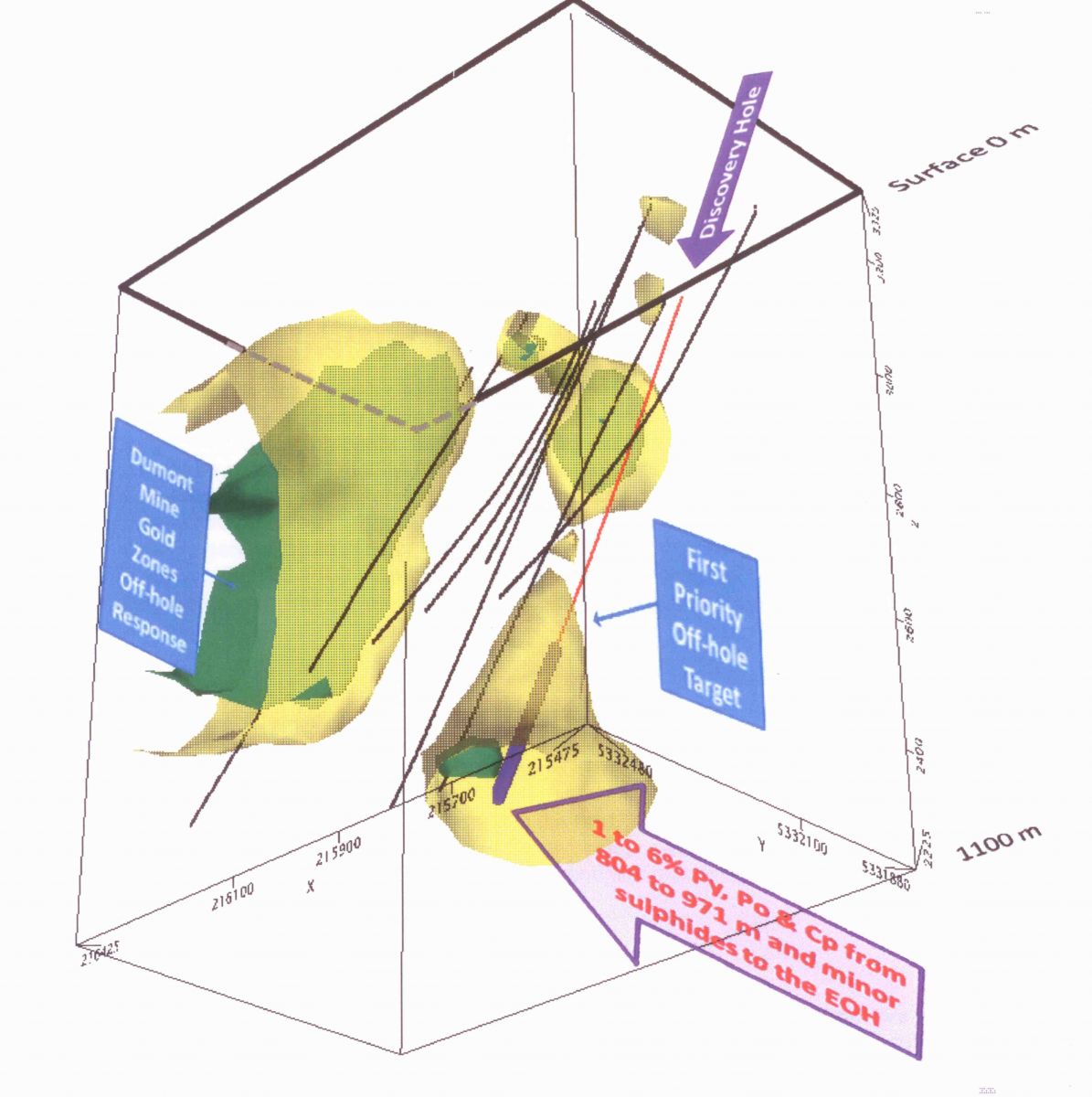

Fourteen hole-pairs were surveyed using Hole-to-Hole-IP and the data was inverted using Image3D. Two outstanding off-hole anomalies were mapped.

The large off-hole anomaly, on the far left, is a complex expression of the Dumont gold-bearing zone located north of the Aurbel property combined with a cultural contribution from underground mine relics. The sources of this anomaly were differentiated by the time constant.



The off-hole anomaly, on  the bottom right, is located below the borehole.

It has subsequently been drill-tested. A zone with pyrite, pyrrhotite and chalcopyrite has been intersected from 804 to the end-of-hole at 1085 meters.
